Ducting Size Guide
Kair Ducting Adaptor Reducer 204mm x 60mm to 110mm x 54mm
Original price was: £4.34.£2.77Current price is: £2.77.
Found it cheaper? we will match or beat that price for you wherever possible. See Details
You may return an item within 60 days for a full refund. Returns Details | Delivery Details
Rated Excellent by our customers, See Reviews
Need help or have a query? You can fill in our Contact Form or call us on 020 8463 9696
Kair Airbrick Adapter System 100 – System 204
Product Details:
TO CONNECT DUCVKC249 STRAIGHT RECTANGULAR DUCT TO DUCVKC704 AIRBRICK GRILLE OR DUCVKC5604.
This versatile Kair Ducting Converter can be used to convert between Kair SYS-100 Rectangular Ducting and Kair System 204 Rectangular Ducting Pipe (SYSTEM 204 FLAT CHANNEL – Part: “DUCVKC5604”).

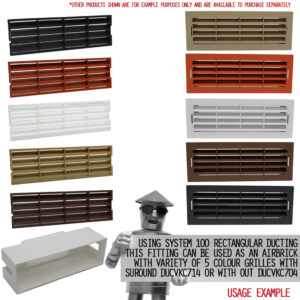

Also connects to DUCVKC704 Airbrick Grille or DUCVKC714 – Airbrick Grille with Surround.
Compact dimensions. Perfect for flush fitting against ceilings and walls. Perfectly suited for ducting your Bathroom or Kitchen extractor fan, Hydroponics, In-Line Extract Fans, Tumble Dryer, or Cooker Hood. This item can be used as a part of a long ductwork run for a variety of purposes including whole-house ventilation, passive stack vent, positive input ventilation, air conditioning, HVAC, and Heat Recovery systems.
It is recommended that you adapt up from system-100 to system-204, and not the other way round. Adapting down from system-204 to system-100 could create unwanted duct sound and possible fan damage.
Perfect for DIY and Trade use.
Genuine Kair Product & covered by the Kair 100% Satisfaction Guarantee. Compatible with the extensive Kair SYSTEM 100 / SYSTEM 204 range of fittings, outlets, and grilles.
| Model | DUCVKC247 |
|---|---|
| QS code | QS201 |
| Barcode | 5060272541033 |
| Product type | Adaptor |
| Product group | Plastic Ducting |
| Flat system (mm) | 204x60 |

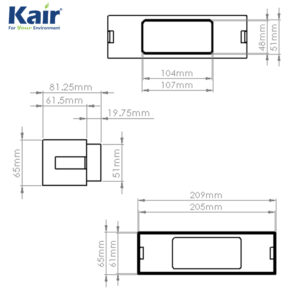

| Width (mm) | 209 |
| Weight (kg) | 0.096 |
| Height (mm) | 64 |
| Length (mm) | 78 |
| Socket size (mm) | 59 x 204 x 60 |
| Spigot szie (mm) | 19 x 103 x 48 |
| Temp max | 60 |
| Temp min | -15 |
| Material | Polystyrene |
| Packaged height (mm) | 65 |
| Packaged length (mm) | 210 |
| Packaged width (mm) | 83 |
| Packaged weight (kg) | 0.097 |
You must be logged in to post a review.
Read our full delivery information
Free Delivery Over £100
For items in stock. Excludes timed and non UK Mainland deliveries.
Cut off time 12:00 (noon)
Orders placed after midday will be shipped the following working day.
Free Delivery Over £100
For items in stock. Excludes timed and non UK Mainland deliveries.
Cut off time 12:00 (noon)
Orders placed after midday will be shipped the following working day.

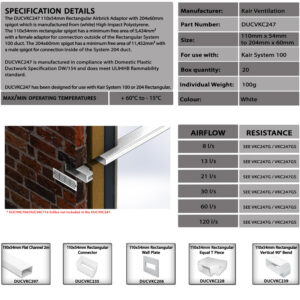

DUCVKC247 Kair System 110x54mm Rectangular Airbrick Adaptor to 204x60mm - Technical Datasheet
Questions and answers of the customers
-
Hi Is the 100 mm spigot in the centre of the 204 mm main rectangle. I do not want an offset unit. Will this unit take a single air brick ?
TIA.
-
QHi Is the 100 mm spigot in the centre of the 204 mm main rectangle. I do not want an offset unit. Will this unit take a single air brick ? TIA.answer nowA Hello AnthonyYes the rectangular spigot is central and is compatible with the plastic airbrick range that can be found in the search bar under DUCVKC703I hope this helps.Ian
Hi Is the 100 mm spigot in the centre of the 204 mm main rectangle. I do not want an offset unit. Will this unit take a single air brick ?
TIA.
-
QHi Is the 100 mm spigot in the centre of the 204 mm main rectangle. I do not want an offset unit. Will this unit take a single air brick ? TIA.answer nowA Hello AnthonyYes the rectangular spigot is central and is compatible with the plastic airbrick range that can be found in the search bar under DUCVKC703I hope this helps.Ian
please supply all dimension for your products to enable a system to be designed for my small country cottage.
Thank you.
Dave
-
Qplease supply all dimension for your products to enable a system to be designed for my small country cottage. Thank you. Daveanswer nowA Hello DaveThank you for your two questions. Unfortunately we are unable to put all the sizes of the products to answer your questions but sizes can be found on our web site under the product tab. If they are not stated please give me a call on 0208 463 9683 and i will be happy to help. The size of the DUCVKC247 areLength (mm)78Width (mm)209Height (mm)64Spigot size (mm)19 x 103 x 48Socket size (mm)59 x 204 x 60
