Rytons 125mm Baffled Aircore Controllable – Push/Pull Louvre – White

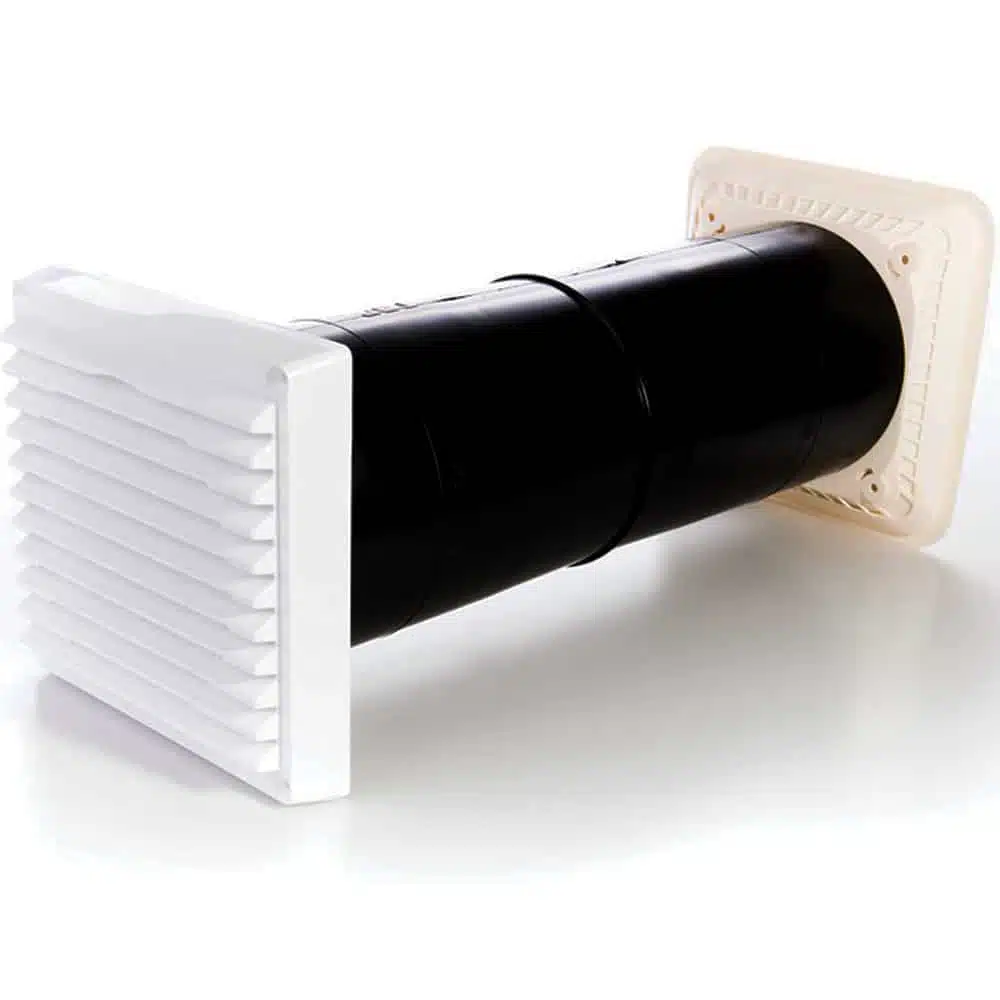

RYTAC7HPWH – RYTONS 125MM BAFFLED AIRCORE CONTROLLABLE PANEL – WHITE

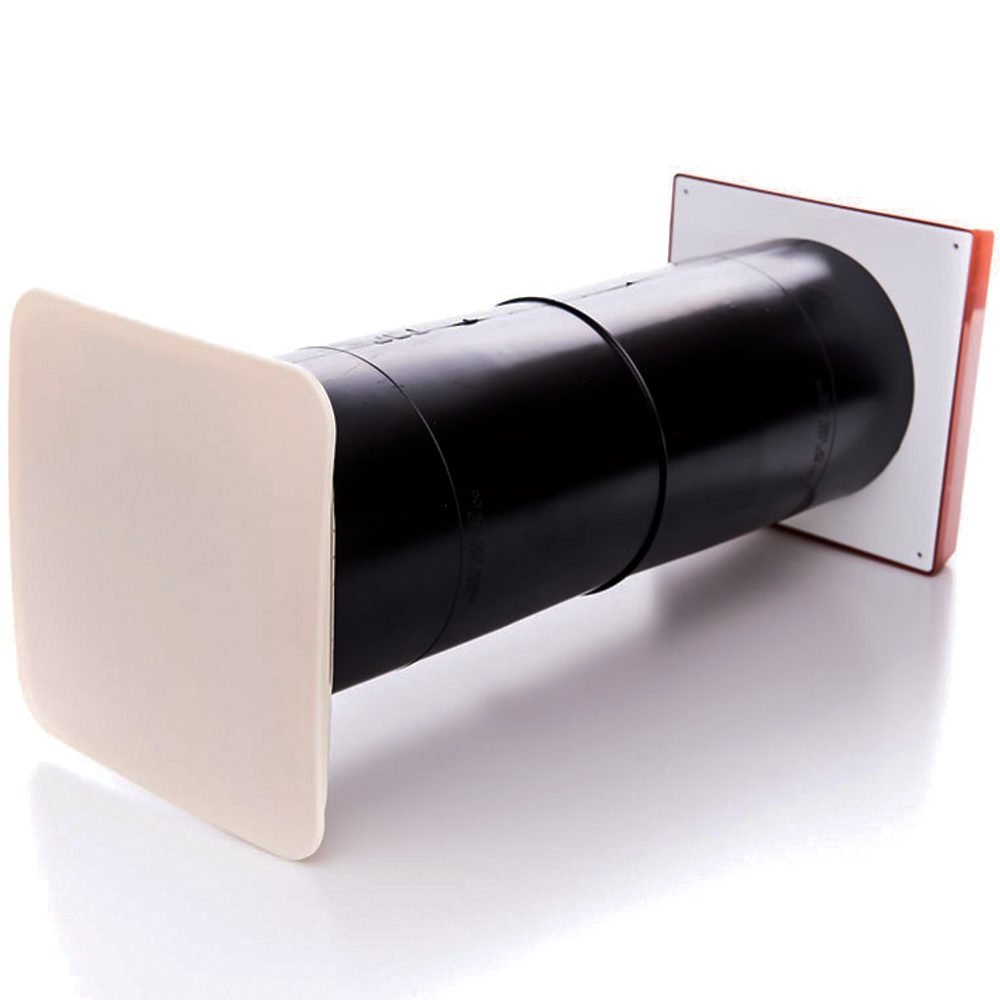

AC7HP – Rytons Baffled Controllable LookRyt® AirCore®

Retro-fitted core ventilator for background room ventilation

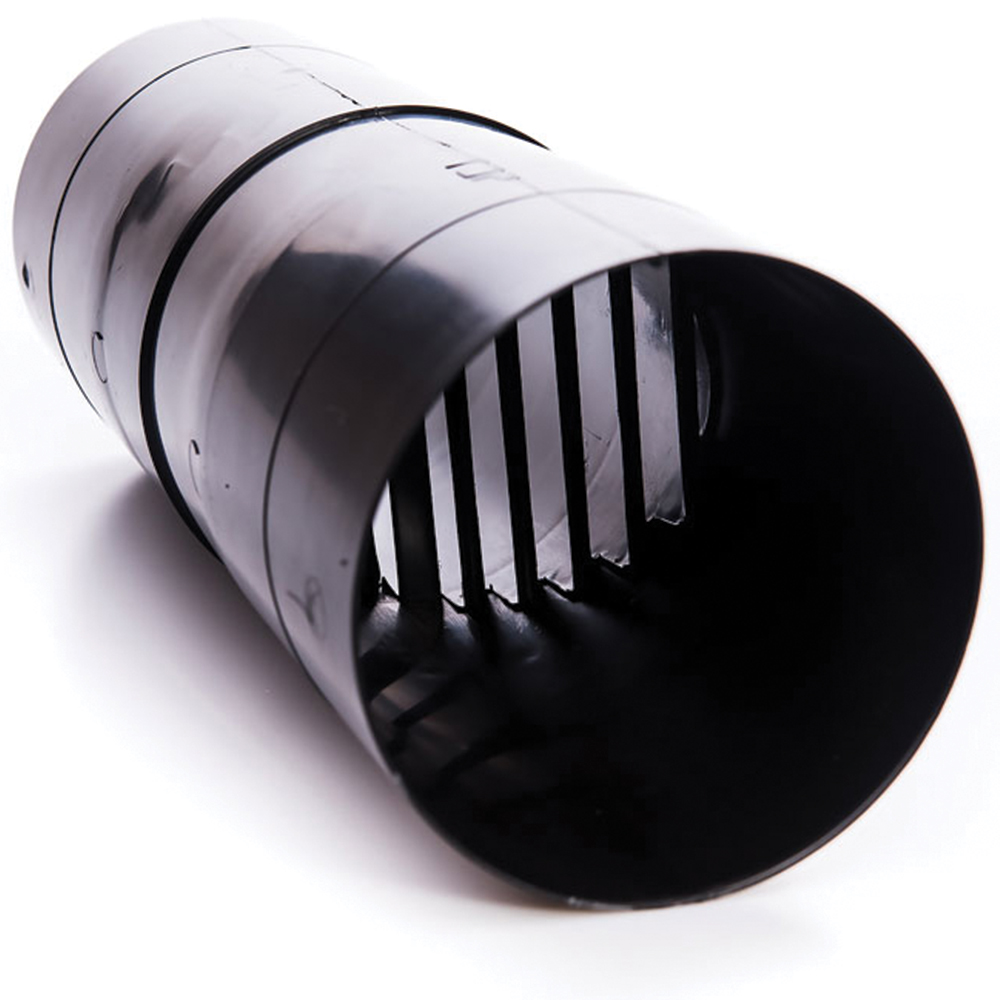

• Tube contains a light and draught reducing system of baffles which allow a high equivalent area over 6000mm².
• New and uniquely designed internal LookRyt® panel disperses air evenly into the room and may be painted or wallpapered to match décor.
• LookRyt® panel manually adjusted with an easy push/pull action giving the occupier full control over the amount of ventilation let into the room.
• External water baffle prevents transfer of water across the cavity.
• Interlocking components aid correct positioning, alignment and easy installation.
• External grille U.V. stabilised to slow down the effects of sunlight.
• LookRyt® panel easily secured using fixing screws provided.
• Verifiable equivalent area confirmed by the BRE.

Equivalent Area

6500mm² (65cm²) per set.

Size

• External Grille: 166mm L x 160mm H.
• Tube: 127mm (5″) Dia. x 358mm L (a maximum of 63mm may be cut from each end of the tube).
• LookRyt® Panel: 172mm L x 172mm H.

Colours

• Magnolia internal LookRyt® panel (may be decorated).

Choice of external grille:

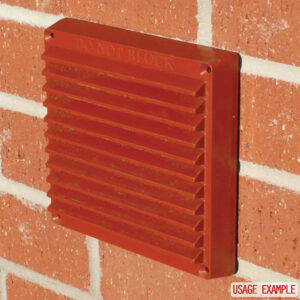

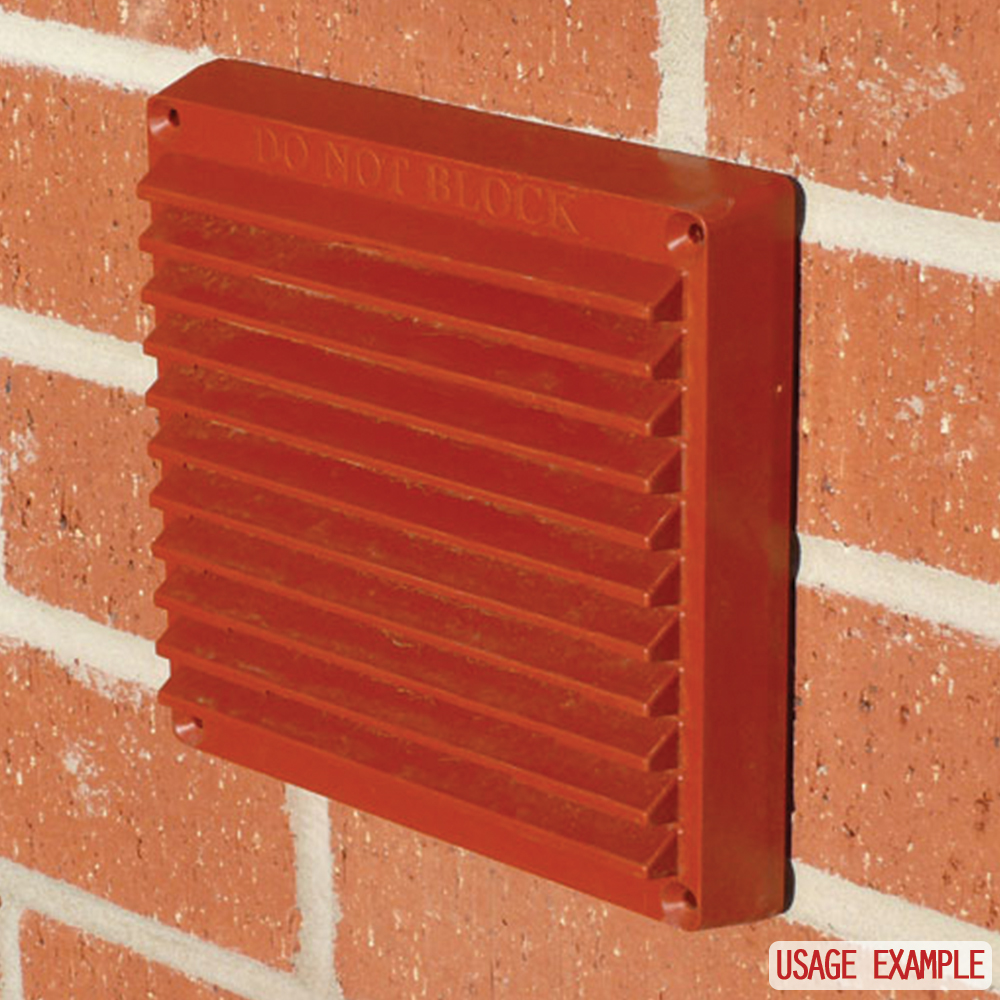

• Terracotta (AC7HPTC)
• Buff/Sand (AC7HPBS)
• White (AC7HPWH)

Composition

• External Grille: U.V. stabilised high impact polystyrene.
• Tube: High impact polystyrene.  Tube contains recycled plastic.
• LookRyt® Panel: High impact styrene.

• Softening / Melting Points: Tube: Softening point 70ºC, melting point 120ºC.

Installation

Warning: DO NOT attach the internal LookRyt® face panel until the internal LookRyt® backplate is fixed to the wall using the screws provided.  Screws: The four screws provided are for fixing the internal LookRyt® backplate to the internal wall.  Any suitable fixings can be used for the external grille, dependent on the external surface.

• To comply with Building Regulations Part F the ventilator should be sited not less than 1.7m above floor level.
• Drill a hole using a 127mm diameter core drill.
• Cut tube to length if necessary (maximum reduction 63mm from each end) then insert the tube into the hole.
• Align and push fit the external louvre and backplate (screw into position for extra security).  Tip: Save installation time by securing the external louvre grille to the backplate with a mastic sealant.
• DO NOT attach the internal LookRyt® face panel until the internal LookRyt® backplate is fixed to the wall using the screws provided.
• Align and screw the internal LookRyt® backplate to the wall using the screws provided.
• ONLY when the internal LookRyt® backplate is screwed in place can you push fit the internal LookRyt® face panel.

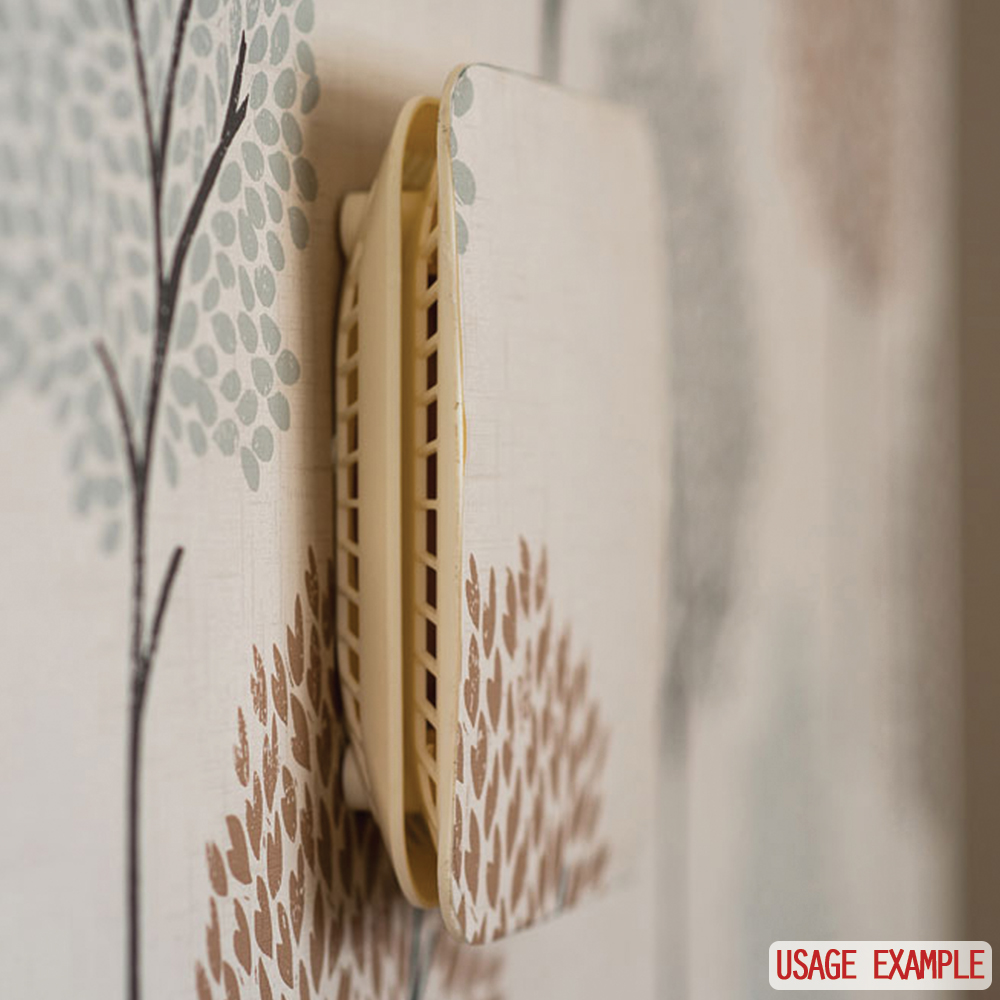

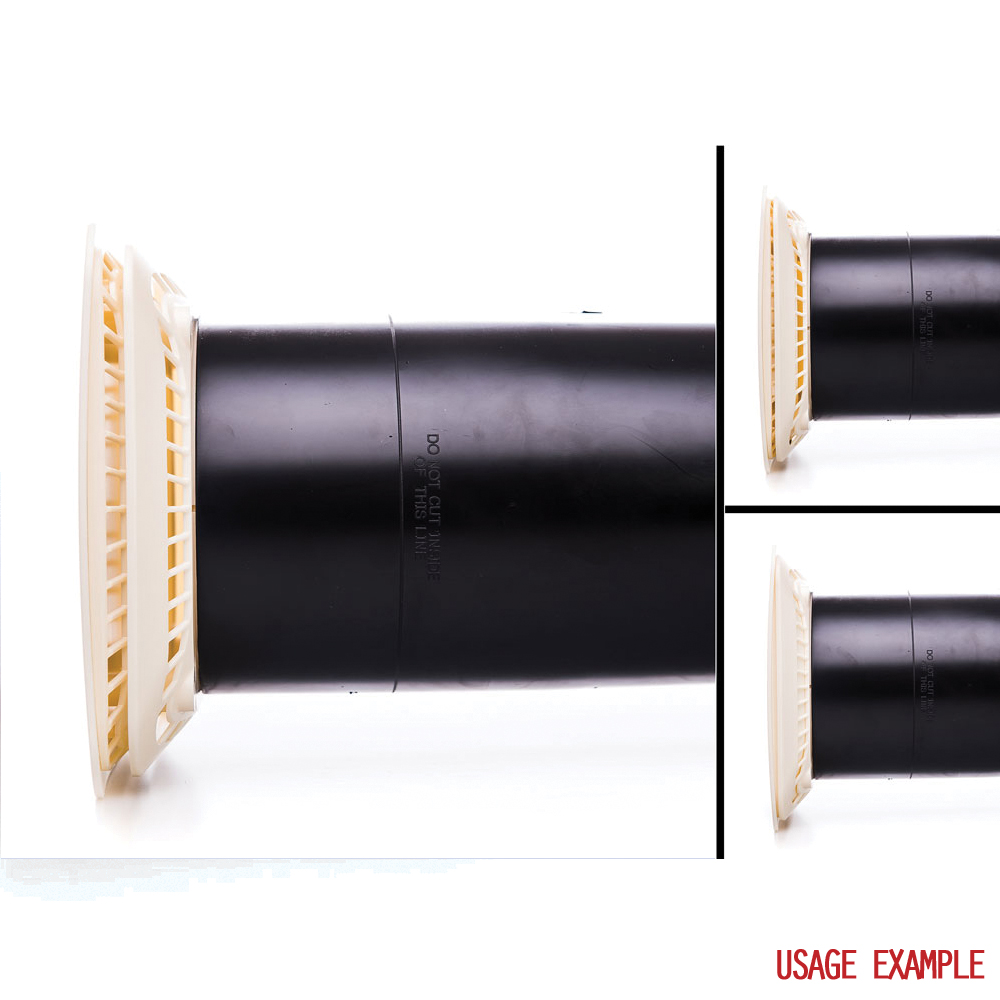

• The grille may then be opened and closed using a push/pull action.

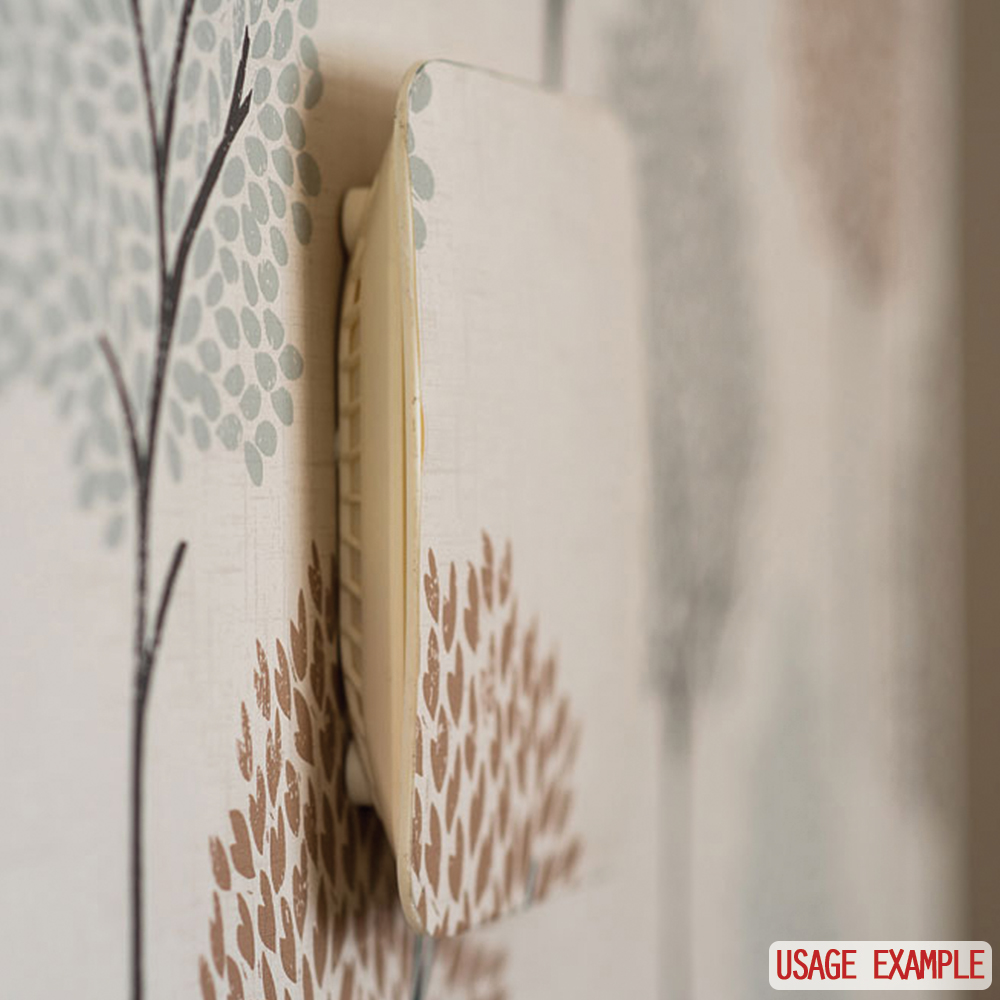

• The internal LookRyt® face panel can be painted or wallpapered to match the room décor.
• Consideration should be given to using Rytons AirCore® Cowl (ABC8) externally in exposed areas.

UK Regulations and Standards

• The Building Regulations 2000, Approved Document F.
• The Building (Scotland) Regulations, Mandatory Standard 3.14.
• The Building Regulations (Northern Ireland) 2000, Technical Booklet K.
• British Standard BS 5250:2011.

Questions and Answers

• Is a cowled option available for exposed areas?  Yes, Rytons AC7HPCW.
• Is an extension tube available?  Yes, Rytons AC7TUBE with Rytons ACCONECT.
