Slate Vent Pitched Roof Ventilator Grey Multi Spigot Connection 100-125-150mm
Original price was: £129.13.£96.41Current price is: £96.41.
Found it cheaper? we will match or beat that price for you wherever possible. See Details
You may return an item within 60 days for a full refund. Returns Details | Delivery Details
Rated Excellent by our customers, See Reviews
Need help or have a query? You can fill in our Contact Form or call us on 020 8463 9696

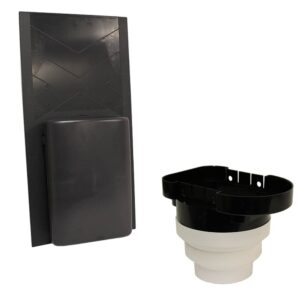

PITCHED ROOF MULTI SPIGOT VENTILATOR – GREY
Suitable for soil ventilation or mechanical extraction.
- Large free area of 20,000mm2 for high flow system performance
- Low profile design makes it unobstructed on the roofline
- Easy installation and interlocking with adjacent slates or tiles
- Blends with man-made/natural slates and tiles
- The perfect solution for Heat Recovery Systems to ensure maximum efficiency

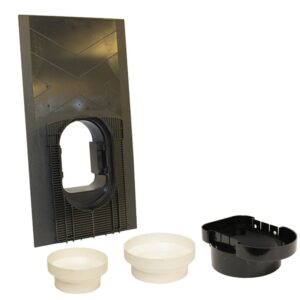

The Tile Ventilator range offers a high free area to maintain a low ventilation system pressure. This allows greater flexibility when selecting your heat recovery system. Easy installation and fixing save time and effort. Supplied complete with a 150mm-100mm ducting adapter for quick fit connection within the roof space onto your ducting setup.
The range of roof covering and tile ventilators are designed to fit seamlessly into the roof profile and blend with the chosen covering.
SUITABLE FOR
- 600mm x 300mm (24″ x 12″)
- 500mm x 250mm (20″ x 10″) double lap slates
- Man-made or natural slates
- Redland plain tiles (265 x 165mm)
- Roofs with a pitch over 20°

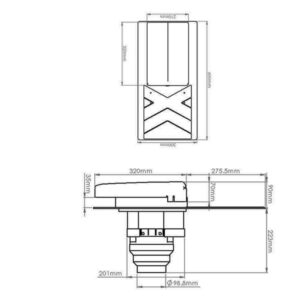

DIMENSIONS
Length: 600mm
Width: 380mm
Depth: 91mm
Weight: 15kg
PERFORMANCE
Provides opening ventilation.
Vent Spacing:
5mm opening or 4m centres
10mm opening or 2m centres
25mm opening or 800mm centres
AIRFOW PERFORMANCE
15 (l/s) = 3 pascals
30 (l/s) = 9 pascals
60 (l/s) = 36 pascals
| Model | DUCSLATEVENT-GRY |
|---|---|
| QS code | QS38947 |
| Barcode | 5060272547394 |
| Product type | Roof Vent |
| Product group | Plastic Ducting |
| Width (mm) | 380 |
| Weight (kg) | 2.4 |
| Height (mm) | 91 |
| Length (mm) | 600 |
| Spigot szie (mm) | 100 - 125 - 150 |
| Thickness | 91 |
| Free area | 20,000 |
| Pressure loss pa 15 ls | 3 |
| Pressure loss pa 30ls | 9 |
| Pressure loss pa 60 ls | 36 |
| Packaged height (mm) | 145 |
| Packaged length (mm) | 520 |
| Packaged width (mm) | 400 |
| Packaged weight (kg) | 2.4 |
You must be logged in to post a review.
Read our full delivery information
Free Delivery Over £100
For items in stock. Excludes timed and non UK Mainland deliveries.
Cut off time 12:00 (noon)
Orders placed after midday will be shipped the following working day.
Free Delivery Over £100
For items in stock. Excludes timed and non UK Mainland deliveries.
Cut off time 12:00 (noon)
Orders placed after midday will be shipped the following working day.
Product has no documents.
Questions and answers of the customers
-
Hello, my roof tile size is 20” x 12”, can this product be trimmed to suit as it ok in width but 24” long, needs to be 20”?
-
QHello, my roof tile size is 20” x 12”, can this product be trimmed to suit as it ok in width but 24” long, needs to be 20”?answer nowA Hi Pete im phil from the technical department I just tried to call you and left you a message to discuss your query on your roof tile vent if you could give us a call at a convenient time for yourself I would be happy to assist you chooseing your product.many thanks phil @ i-sells
Hi, I have a Manrose MF100T ready to fit into a loft of a Victorian terrace, are these easy to fit into the roof line, are they compatible with the Manrose and as the pipework will be going up as against horizontal if going via the soffits, will there be condensation collecting in the pipework or worse, returning to the Manrose?
Steve
-
QHi, I have a Manrose MF100T ready to fit into a loft of a Victorian terrace, are these easy to fit into the roof line, are they compatible with the Manrose and as the pipework will be going up as against horizontal if going via the soffits, will there be condensation collecting in the pipework or worse, returning to the Manrose? Steveanswer nowA Hello SteveThe slate vent has a spigot suitable for 150, 125 and 100mm ducting so is compatible with the 100T.The description of the slate vent claims easy installation and fitting with existing tiles and slates but I would expect access to the roof will be necessary.Ducting should be kept as short as possible and only insulated ducting should be used to minimize the chances of condensation forming alternatively a condensation trap could be installed after the machine and as the ducting turns vertically.I hope this helpsIan
Is this product suitable for use as the outlet for a cooker hood extractor fan ?
-
A Hello DavidI have checked an airflow calculator against the manufacturers specification and the answer is yes, the product would be suitable for hoods up to a max power of 144 l/s or 520m3 hr.RegardsIan
Hi is this suitable for use with a bathroom extractor fan?
-
A Hello Simon Thank you for your question. Yes the pitched slate vent can be used for your application if you have a pitch over 20 degrees. If I can help any further please do not hesitate to contact me on 0208 463 9683 Kind Regards Anita
