Vent Axia 1.5A Speed Controller (W300310)

VENT AXIA 1.5A SPEED CONTROLLER (W300310)

Product Details:

• For use with ACM Range (Non-Timer Models Only)
• On/Off neon indicator.
• Infinitely variable speed control.
• Adjustable minimum speed setting and optional sensor mode.
• The controller is radio-suppressed to BS800
• Rated at 1.5 amps.
• Single Phase.
• Not to be used in conjunction with timer models or modules.

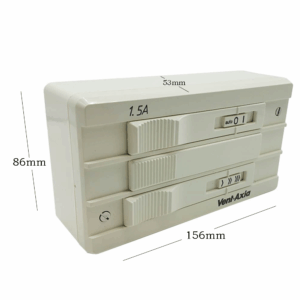

86 x 156 x 53mm (H x W x D). For flush-fitting a metal wall box accessory is available.

Hole for wall box:80x150x150mm (HxWxD)

Stock Ref: W300310

Installation Tips:

• THIS APPLIANCE MUST BE EARTHED

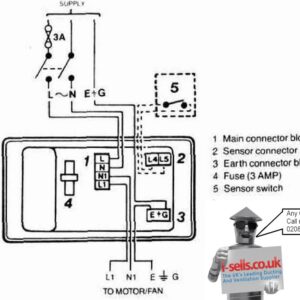

• Ensure that the mains supply is isolated before proceeding with the wiring.
• The controller may be sited in any convenient position that is unaffected by direct heat sources such as radiators, boilers etc.
• Do not site the controller where it may be subject to water spray, condensation, damp or wet conditions.
• Ensure that the controller is installed in a ventilated area.
• Ensure that the enclosure is securely mounted using appropriate fixing screws or bolts.
• If the enclosure is mounted on a metal surface or partition, ENSURE THAT THE SURFACE IS EARTHED.
• The control unit has been factory set to Vent-Axia&#39s recommended minimum speed.

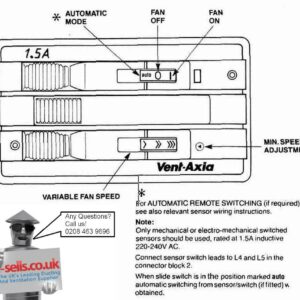

• A minimum speed adjuster is located on the front of the controller and is exposed when the bottom slide bar is moved fully to the left.
