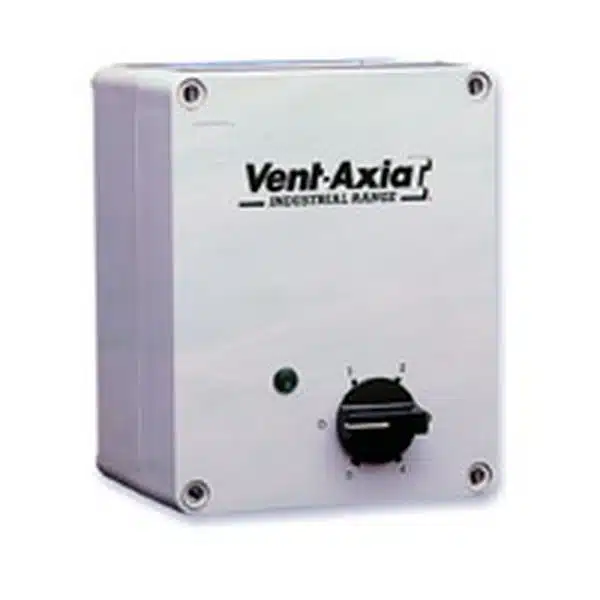

VENT AXIA 3A 5 STEP TRANSFORMER (10314103)
Used in conjunction with speed controllable fans to provide 5 stepped speed without electronic motor ‘hum’. Several fans can be connected to one transformer provided their combined load does not exceed the controller rating.
- Rotary switch giving On/Off and five speeds, neon indicator
- Input Voltage 240V/1PH/50Hz, Max 3 Amps
- Output voltages at 240V/1PH/50Hz 0, 90, 115, 140, 175, 240 volts.
- Enclosures are protected to IP54
Dimension, 135mm x 170mm x 117mm (width x height x depth)
Weight 4.0 Kg
| Model | VENCONTROLLER-10314103 |
|---|---|
| QS code | QS3670 |
| Product type | Controller |
| Product group | Fan Ancillaries |
| Weight (kg) | 3.4 |
| Packaged height (mm) | 230 |
| Packaged length (mm) | 300 |
| Packaged width (mm) | 175 |
| Packaged weight (kg) | 3.4 |
You must be logged in to post a review.
Read our full delivery information
Free Delivery Over £100
For items in stock. Excludes timed and non UK Mainland deliveries.
Cut off time 12:00 (noon)
Orders placed after midday will be shipped the following working day.
Free Delivery Over £100
For items in stock. Excludes timed and non UK Mainland deliveries.
Cut off time 12:00 (noon)
Orders placed after midday will be shipped the following working day.
5 Step Auto Transformer Installation Instructions
VA Electronic 5 Step Controllers Catalogue Page
Questions and answers of the customers
-
Can the 10314103 controller be used with the ACM100 fan.
-
A Hello Bob, That option wouldbe a very expensive way of controlling a relatively inexpensive fan, the recommended controller for the ACM100 is a variable speed control product code W300310.Can be found by entering QS3673 into the search bar.
