Kair Rectangular Ducting Retaining Clip Support Bracket
Found it cheaper? we will match or beat that price for you wherever possible. See Details
You may return an item within 60 days for a full refund. Returns Details | Delivery Details
Rated Excellent by our customers, See Reviews
Need help or have a query? You can fill in our Contact Form or call us on 020 8463 9696
KAIR RECTANGULAR FLAT CHANNEL DUCTING PIPE SUPPORT CLIP
The bracket can be fixed to a ceiling, joist, or other fixed point using sealant or a screw (Not provided).
Kair System Rectangular Ducting is designed for short duct runs and it can be easily concealed due to its low profile. It is perfect for installations requiring low extraction rates such as bathrooms, toilets, and utility rooms. It can be flush-fitted against ceilings and walls and can be concealed above wall units or inside ceiling voids.
- Supports ducting in place for ease of installation & maintenance
- Easy to fit & allows you to keep your ducting installation neat and tidy
- Helps prevent health & safety hazards
- Made in the UK using strong high-quality white polystyrene/polypropylene material.
- Max / Min Temperature: +60c / -15c.
Suitable for commercial and domestic use. Perfectly suited for ducting your tumble dryer, bathroom or kitchen extractor fan, hydroponics, in-line extract fans, or a cooker hood.
This item can be used to support long ductwork runs for a variety of purposes including whole-house ventilation, passive stack vent, positive input, air conditioning, HVAC, and heat recovery systems.
| Model | DUCVKC230 |
|---|---|
| QS code | QS171 |
| Barcode | 5060272540685 |
| Product type | Support Clip |
| Product group | Plastic Ducting |
| Flat system (mm) | 110x54 |
| Width (mm) | 116 |
| Weight (kg) | 0.011 |
| Height (mm) | 59 |
| Length (mm) | 20 |
| Temp max | 60 |
| Temp min | 15 |
| Material | ABS Plastic |
| Packaged height (mm) | 115 |
| Packaged length (mm) | 20 |
| Packaged width (mm) | 60 |
| Packaged weight (kg) | 0.002 |
| Model | DUCVKC705 |
|---|---|
| QS code | QS408 |
| Barcode | 5060272543365 |
| Product type | Support Clip |
| Product group | Plastic Ducting |
| Flat system (mm) | 234x29 |
| Width (mm) | 18 |
| Weight (kg) | 0.006 |
| Height (mm) | 33 |
| Length (mm) | 45 |
| Temp max | 60 |
| Temp min | -15 |
| Material | Polypropylene |
| Packaged height (mm) | 35 |
| Packaged length (mm) | 35 |
| Packaged width (mm) | 20 |
| Packaged weight (kg) | 0.005 |
| Model | DOM922 |
|---|---|
| QS code | QS3067 |
| Barcode | 5014662010456 |
| Product type | Support Clip |
| Product group | Plastic Ducting |
| Flat system (mm) | 220x90 |
| Packaged height (mm) | 100 |
| Packaged length (mm) | 20 |
| Packaged width (mm) | 50 |
| Packaged weight (kg) | 0.016 |
| Model | DUCVKC5610 |
|---|---|
| QS code | QS305 |
| Barcode | 5060272542436 |
| Product type | Support Clip |
| Product group | Plastic Ducting |
| Flat system (mm) | 204x60 |
| Width (mm) | 66 |
| Weight (kg) | 0.031 |
| Height (mm) | 25 |
| Length (mm) | 215 |
| Socket size (mm) | 205 |
| Temp max | 60 |
| Temp min | -15 |
| Material | Polypropylene |
| Packaged height (mm) | 65 |
| Packaged length (mm) | 25 |
| Packaged width (mm) | 215 |
| Packaged weight (kg) | 0.032 |
| Model | DUCVKC610 |
|---|---|
| QS code | QS340 |
| Barcode | 5060272541743 |
| Product type | Support Clip |
| Product group | Plastic Ducting |
| Flat system (mm) | 150x70 |
| Width (mm) | 75 |
| Weight (kg) | 0.013 |
| Height (mm) | 20 |
| Length (mm) | 155 |
| Socket size (mm) | 150 |
| Temp max | 60 |
| Temp min | -15 |
| Material | Polypropylene |
| Packaged height (mm) | 20 |
| Packaged length (mm) | 160 |
| Packaged width (mm) | 75 |
| Packaged weight (kg) | 0.015 |
| Model | DUCVKC664 |
|---|---|
| QS code | QS390 |
| Barcode | 5060272542276 |
| Product type | Support Clip |
| Product group | Plastic Ducting |
| Flat system (mm) | 180x90 |
| Width (mm) | 91 |
| Weight (kg) | 0.053 |
| Height (mm) | 20 |
| Length (mm) | 224 |
| Temp max | 60 |
| Temp min | -15 |
| Packaged height (mm) | 20 |
| Packaged length (mm) | 85 |
| Packaged width (mm) | 95 |
| Packaged weight (kg) | 0.053 |
17 reviews for Kair Rectangular Ducting Retaining Clip Support Bracket
You must be logged in to post a review.
Read our full delivery information
Free Delivery Over £100
For items in stock. Excludes timed and non UK Mainland deliveries.
Cut off time 12:00 (noon)
Orders placed after midday will be shipped the following working day.
Free Delivery Over £100
For items in stock. Excludes timed and non UK Mainland deliveries.
Cut off time 12:00 (noon)
Orders placed after midday will be shipped the following working day.

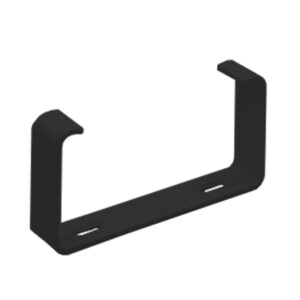

DUCVKC230 Kair System 110x54mm Rectangular Ducting Retaining Clip Support Bracket - Technical Data Sheet
DUCVKC610 Kair System 150x70mm Rectangular Ducting Retaining Clip Support Bracket - Technical Data Sheet
DUCVKC664 Kair System 180x90mm Rectangular Ducting Retaining Clip Support Bracket - Technical Data Sheet

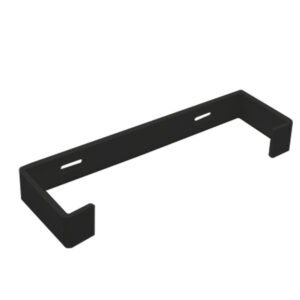

DUCVKC5610 Kair System 204x60mm Rectangular Ducting Retaining Clip Support Bracket - Technical Data Sheet
Questions and answers of the customers
-
Does this bracket fit the 90mm side or the 220mm size.
Please reply by email
-
A Hello PeterThank you for your question. The clip fits onto the 90mm side of the ducting. If I can help any further please do not hesitate to contact meKind RegardsAnita
I have just requested dimensions from you.
These dimensions are for your 100 & 204 duct sizes. thank you
Dave
-
QI have just requested dimensions from you. These dimensions are for your 100 & 204 duct sizes. thank you Daveanswer nowA Hello DaveThe dimensions for the DUCVKC5610 are.Flat System204Length (mm)215Width (mm)66Height (mm)25
