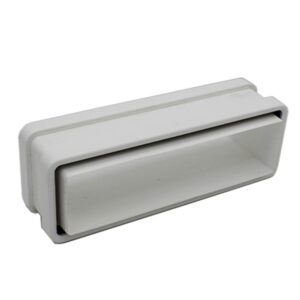

KAIR RECTANGULAR DUCTING STRAIGHT FEMALE CONNECTOR
- Female connector to join lengths of duct channel.
- Male flat ducting pipe will fit inside connector.
- Push-fit design to easily fix ducting and connector together.
Kair ducting is easy to install, just push-fit ducting and connector together. For permanent fixings, seal joints with a method of your choice (Popular options include silicone sealant, solvent cement, or tape).
- Suitable to use in compliance with Part F Building Regulations.
- Airflow performance independently tested by BSRIA or BRE.
- Max / Min Temperature: +60c / -15c.
- Material: Polystyrene/Polypropylene.
- Made in the UK
Kair Rectangular Ducting is designed for short duct runs and it can be easily concealed due to its low profile. It is perfect for installations requiring low extraction rates such as bathrooms, toilets, and utility rooms. It can be flush-fitted against ceilings and walls and can be concealed above wall units or inside ceiling voids.
Kair plastic ducting is lightweight, durable and suitable for commercial and domestic use. It is perfectly suited for ducting your tumble dryer, bathroom or kitchen extractor fan, hydroponics, in-line extract fans, or a cooker hood. This connector can be used as a part of a long ductwork run for a variety of purposes including whole-house ventilation, passive stack vent, positive input, air conditioning, HVAC, and heat recovery systems.
| Model | DUCVKC235 |
|---|---|
| QS code | QS179 |
| Barcode | 5060272540821 |
| Product type | Connector |
| Product group | Plastic Ducting |
| Flat system (mm) | 110x54 |
| Width (mm) | 115 |
| Weight (kg) | 0.046 |
| Height (mm) | 59 |
| Length (mm) | 62 |
| Socket size (mm) | 110x54x30 |
| Temp max | 60 |
| Temp min | -15 |
| Material | uPVC |
| Pressure loss pa 15 ls | 0.03 |
| Pressure loss pa 30ls | 1.4 |
| Pressure loss pa 60 ls | 6.3 |
| Packaged height (mm) | 58 |
| Packaged length (mm) | 62 |
| Packaged width (mm) | 113 |
| Packaged weight (kg) | 0.045 |
| Model | DUCVKC700 |
|---|---|
| QS code | QS398 |
| Barcode | 5060272543310 |
| Product type | Connector |
| Product group | Plastic Ducting |
| Flat system (mm) | 234x29 |
| Width (mm) | 60 |
| Weight (kg) | 0.098 |
| Height (mm) | 35 |
| Length (mm) | 239 |
| Socket size (mm) | 234 |
| Temp max | 60 |
| Temp min | -15 |
| Material | Polystyrene |
| Pressure loss pa 15 ls | 0.05 |
| Pressure loss pa 30ls | 0.26 |
| Pressure loss pa 60 ls | 6.7 |
| Packaged height (mm) | 35 |
| Packaged length (mm) | 60 |
| Packaged width (mm) | 240 |
| Packaged weight (kg) | 0.09 |
| Model | DUCVKC750 |
|---|---|
| QS code | QS424 |
| Barcode | 5060272542641 |
| Product type | Connector |
| Product group | Plastic Ducting |
| Flat system (mm) | 310x29 |
| Width (mm) | 314 |
| Weight (kg) | 0.119 |
| Height (mm) | 25 |
| Length (mm) | 60 |
| Socket size (mm) | 309 |
| Temp max | 60 |
| Temp min | -15 |
| Material | Polystyrene |
| Pressure loss pa 15 ls | 0.3 |
| Pressure loss pa 30ls | 1.17 |
| Pressure loss pa 60 ls | 4.59 |
| Packaged height (mm) | 315 |
| Packaged length (mm) | 35 |
| Packaged width (mm) | 60 |
| Packaged weight (kg) | 0.115 |
| Model | DUCVKC608 |
|---|---|
| QS code | QS338 |
| Barcode | 5060272541736 |
| Product type | Connector |
| Product group | Plastic Ducting |
| Flat system (mm) | 150x70 |
| Width (mm) | 154 |
| Weight (kg) | 0.063 |
| Height (mm) | 74 |
| Length (mm) | 72 |
| Socket size (mm) | 150 |
| Temp max | 60 |
| Temp min | -15 |
| Material | Polystyrene |
| Pressure loss pa 15 ls | 0.1 |
| Pressure loss pa 30ls | 0.44 |
| Pressure loss pa 60 ls | 1.95 |
| Packaged height (mm) | 70 |
| Packaged length (mm) | 70 |
| Packaged width (mm) | 156 |
| Packaged weight (kg) | 0.064 |
| Model | DUCVKC5608 |
|---|---|
| QS code | QS303 |
| Barcode | 5060272542429 |
| Product type | Connector |
| Product group | Plastic Ducting |
| Flat system (mm) | 204x60 |
| Width (mm) | 209 |
| Weight (kg) | 0.094 |
| Height (mm) | 65 |
| Length (mm) | 74 |
| Socket size (mm) | 205 |
| Temp max | 60 |
| Temp min | -15 |
| Material | Polystyrene |
| Pressure loss pa 15 ls | 0.1 |
| Pressure loss pa 30ls | 0.29 |
| Pressure loss pa 60 ls | 1.06 |
| Packaged height (mm) | 63 |
| Packaged length (mm) | 73 |
| Packaged width (mm) | 209 |
| Packaged weight (kg) | 0.096 |
| Model | DUCVKC652 |
|---|---|
| QS code | QS370 |
| Barcode | 5060272542160 |
| Product type | Connector |
| Product group | Plastic Ducting |
| Flat system (mm) | 180x90 |
| Width (mm) | 185 |
| Weight (kg) | 0.106 |
| Height (mm) | 100 |
| Length (mm) | 80 |
| Socket size (mm) | 180 |
| Temp max | 60 |
| Temp min | -15 |
| Material | Polystyrene |
| Pressure loss pa 15 ls | 0.12 |
| Pressure loss pa 30ls | 0.38 |
| Pressure loss pa 60 ls | 1.21 |
| Packaged height (mm) | 100 |
| Packaged length (mm) | 80 |
| Packaged width (mm) | 185 |
| Packaged weight (kg) | 0.105 |
| Model | DUCVKC5708 |
|---|---|
| QS code | QS18939 |
| Barcode | 5060272547875 |
| Product type | Connector |
| Product group | Plastic Ducting |
| Flat system (mm) | 220x90 |
| Width (mm) | 226 |
| Weight (kg) | 0.117 |
| Height (mm) | 95 |
| Length (mm) | 75 |
| Temp max | 60 |
| Temp min | -15 |
| Packaged height (mm) | 96 |
| Packaged length (mm) | 75 |
| Packaged width (mm) | 226 |
| Packaged weight (kg) | 0.117 |
